Software Control System Layers Architecture
(No disponible todavía en español)
The Software Control System Architecture is being designed based on the Software Standards
specified by GTC Project, and will be fully embedded into the GTC Control System. There will be
three main packages: EMIR Coordinated
Operations Package (ECO), EMIR Simulator Tool
and EMIR Data Reduction Pipeline (DRP).

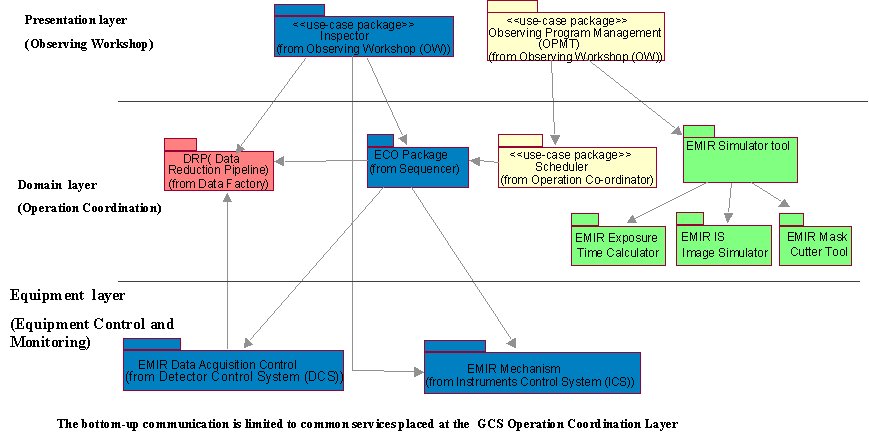

The following plot provides an overall view:
Software Control System Layers Architecture
(click for a larger view)
|
|
